Pedestrian with Double Impact

Protect walkways and infrastructure with Pedestrian with Double Impact from medium duty, high level impacts where there is a reduced risk of ground level impacts. The built-in damping and modular components enable quick reconfiguration, ensuring optimal safety for changing environments.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Posts

    6 Articles
    CAD Article Description Height (mm) Color
    BCE0-116-I2P1 End post 1160 Graphite Black (RAL 9011)
    BCE1-116-I2P1 End post 1160 Zinc Yellow (RAL 1018)
    BCM0-116-I2P1 Mid post 1160 Zinc Yellow (RAL 1018)
    Graphite Black (RAL 9011)
    BCM1-116-I1P1 Mid post 1160 Zinc Yellow (RAL 1018)
    BCC0-116-I2P1 Corner post 1160
    BCC1-116-I2P1 Corner post 1160 Zinc Yellow (RAL 1018)
  • Impact rails

    5 Articles
    CAD Article Length (mm) CC (mm) Color
    RCI1-027-0050 270 500 Zinc Yellow (RAL 1018)
    RCI1-047-0070 470 700 Zinc Yellow (RAL 1018)
    RCI1-077-0100 770 1000 Zinc Yellow (RAL 1018)
    RCI1-127-0150 1270 1500 Zinc Yellow (RAL 1018)
    RCI1-177-0200 1770 2000 Zinc Yellow (RAL 1018)
  • Hand rails

    5 Articles
    CAD Article Length (mm) CC (mm) Color

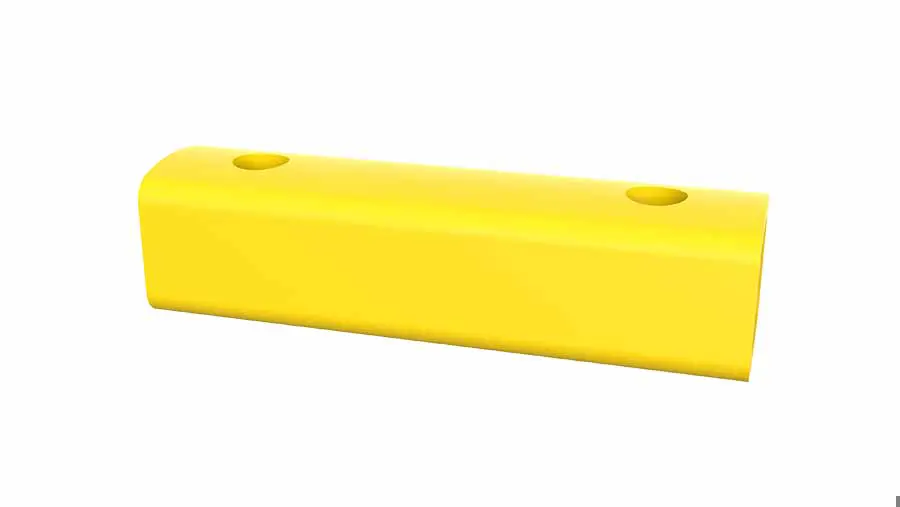

    RCP1-027-0050 270 500 Zinc Yellow (RAL 1018)

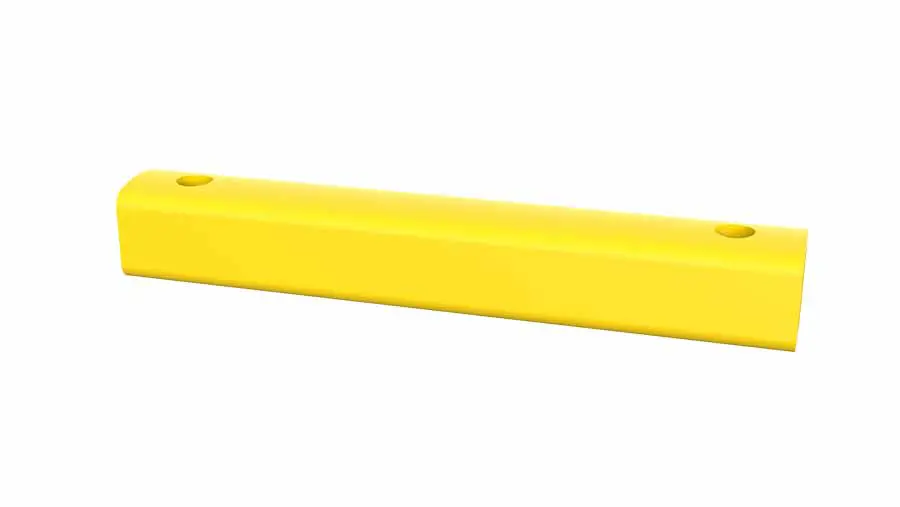

    RCP1-047-0070 470 700 Zinc Yellow (RAL 1018)

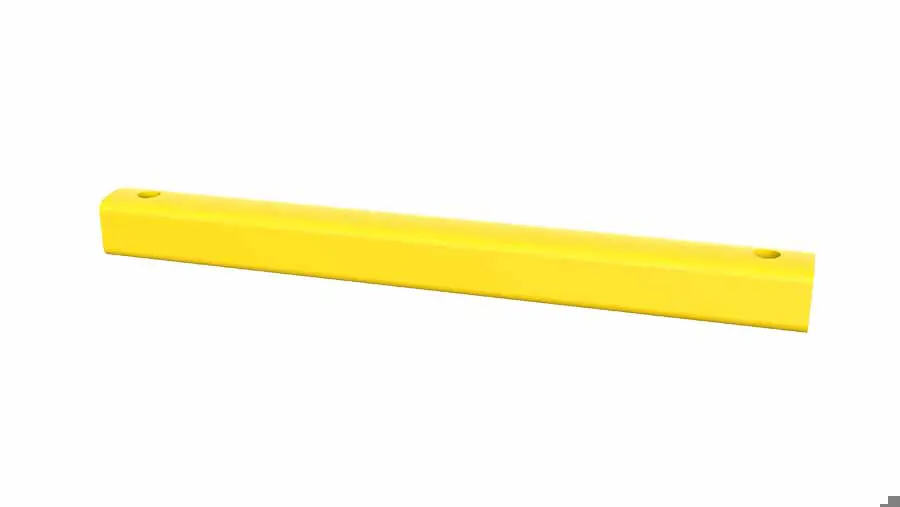

    RCP1-077-0100 770 1000 Zinc Yellow (RAL 1018)
    RCP1-127-0150 1270 1500 Zinc Yellow (RAL 1018)

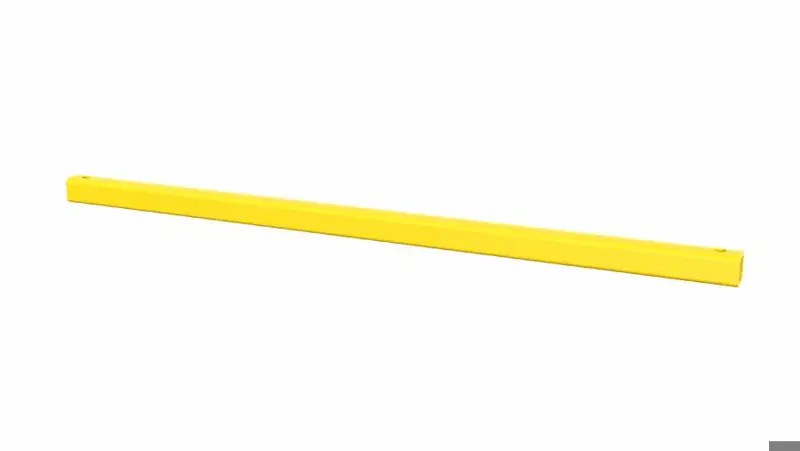

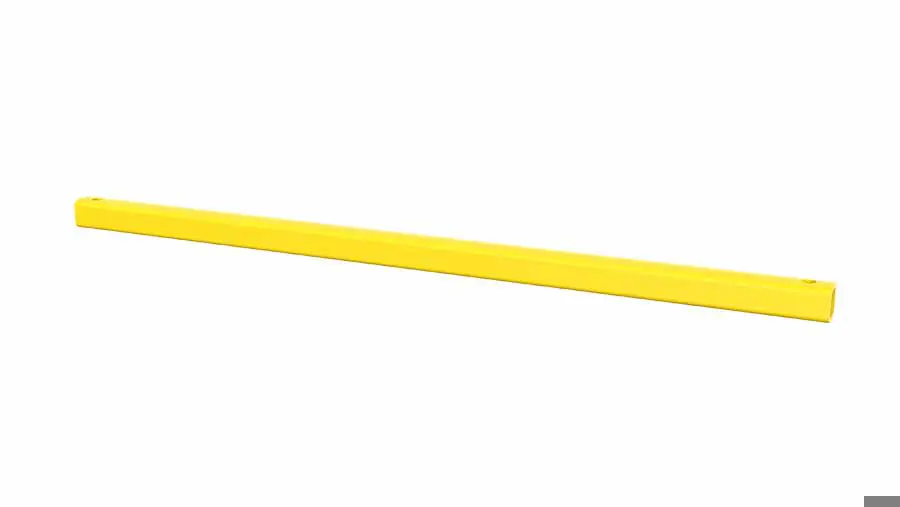

    RCP1-177-0200 1770 2000 Zinc Yellow (RAL 1018)
  • Gate

    1 Articles
    CAD Article Description Color
    GCP3-069-0121 Pedestrian gate 690-1210mm Graphite Black (RAL 9011)

Downloads

Pedestrian with Double Impact

Product information

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

Protect walkways and infrastructure with Pedestrian with Double Impact from medium duty, high level impacts where there is a reduced risk of ground level impacts. The built-in damping and modular components enable quick reconfiguration, ensuring optimal safety for changing environments.

When should you use the Pedestrian with Double Impact configuration?

The Pedestrian with Double Impact configuration protects walkways and infrastructure from medium-duty, high-level impacts where ground-level risk is lower. It can be easily integrated with a self-closing pedestrian gate, equipped with a universal handle and adjustable width (690–1210 mm).

This impact protection system offers a unique approach to safety barriers. It offers modularity, relying on few system components and incorporating built-in damping to create a barrier solution that adapts to your workplace. The system supports rapid transformation, repair, or replacement of existing barriers, and bespoke configurations have no limits.

Impact test results
Area of impact Load Equivalent to 90° deflection Force to fixings
Centre of barrier C - C as below
2000mm 8300 J 2500 kg
9.3 km/h
5000 kg
6.4 km/h
 380mm 11.2 kN
Posts
End post 2400 J 2500 kg
5 km/h
5000 kg
3.5 km/h
NA * 9.3 kN
Mid post 2550 J 2500 kg
5.1 km/h
5000 kg
3.7 km/h
NA * 12.7 kN

*Deflection of posts is equivalent or less than that of the rail/s an dis not considered to be critical for production selection. Performance is tested at height of the lowest rail. The post will perform better for lower strikes and deflection will be reduced.
