Two tier bike rack

One sided two tier bike rack

Our bi-level bike rack is a smart and flexible solution. The modular system allows you to adapt and expand your bike rack over time, depending on your needs and space. Choose from different rail solutions to create the best parking for your business:

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Fixed rail

    3 Articles
    CAD Article Description Width (mm) Depth (mm) CC (mm) Surface Treatment Other
    300-22L Min. ceiling height 2420 800 1842 400 Hot dip galvanized Number of bikes 4
    1 4

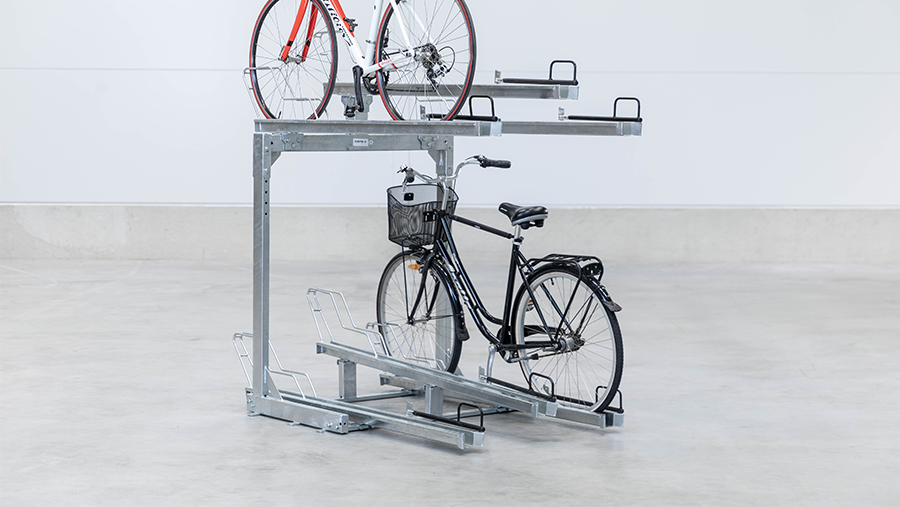

    300-33L Min ceiling height 2420 1200 1842 400 Hot dip galvanized Number of bikes 6
    1 4

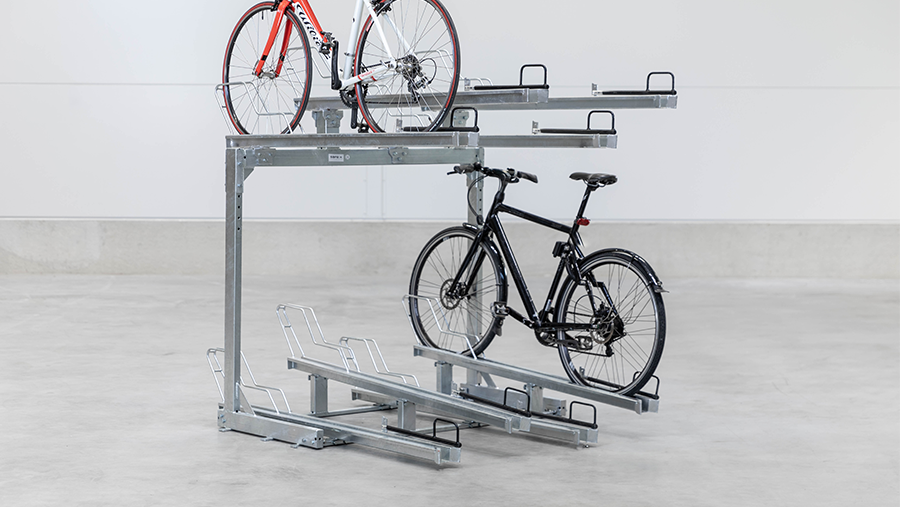

    300-44L Min ceiling height 2420 1600 1842 400 Hot dip galvanized Number of bikes 8
    1 4
  • Short extendable rail

    3 Articles
    CAD Article Description Width (mm) Depth (mm) CC (mm) Surface Treatment Other
    400-22UL Rec. depth & min ceiling height 3600x2420 800 1967 400 Hot dip galvanized Number of bikes 4
    1 4
    400-33UL Rec. depth & min ceiling height 3600x2420 1200 1967 400 Hot dip galvanized Number of bikes 6
    4
    400-44UL Rec. depth & min ceiling height 3600x2420 1600 1967 400 Hot dip galvanized Number of bikes 8
    1 4
  • Long extendable rail with gas spring

    3 Articles
    CAD Article Description Width (mm) Depth (mm) CC (mm) Surface Treatment Other
    100-44L Min ceiling height 2420 1600 3600 400 Hot dip galvanized Number of bikes 8
    1 4
    100-33L Min ceiling height 2420 1200 3600 400 Hot dip galvanized Number of bikes 6
    4
    100-22L Min ceiling height 2420 800 2015 400 Hot dip galvanized Number of bikes 4
    1 4

Downloads

One sided two tier bike rack

Product information

Axelent | Bike Racks

Brochure

Axelent | Bike racks

Assembly instruction

Product information

Our bi-level bike rack is a smart and flexible solution. The modular system allows you to adapt and expand your bike rack over time, depending on your needs and space. Choose from different rail solutions to create the best parking for your business:



  • Fixed rail - A stable and reliable solution for those who want an installation without moving parts.
  • Short retractable rail - Helps to position the bike in the right place, providing an orderly and efficient parking.
  • Long pull-out rail with gas spring - For extra ease of use. The gas spring allows the bikes to be easily lifted and lowered, providing smooth and ergonomic parking.

The modular system allows you to start with a basic model and later add or adjust features as needed. This allows you to create a customized solution that grows and adapts to changing requirements and spaces.

We also offer special orders of C/C dimensions, ranging from C/C 375 mm to C/C 600 mm, to give you even more flexibility in the design of your bike rack.
