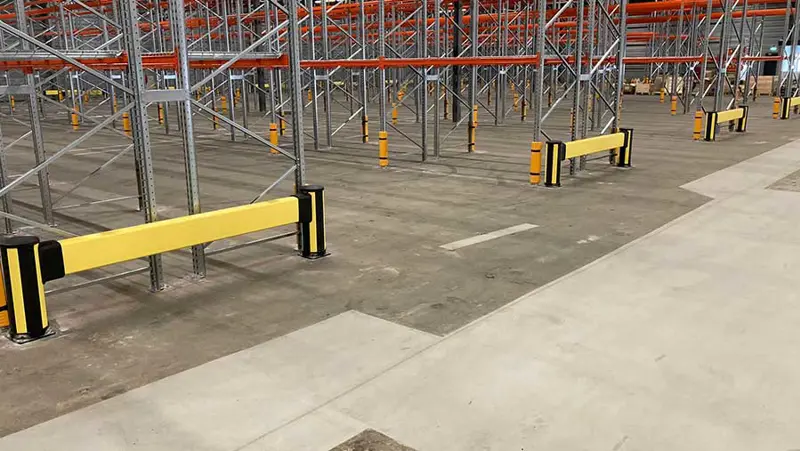

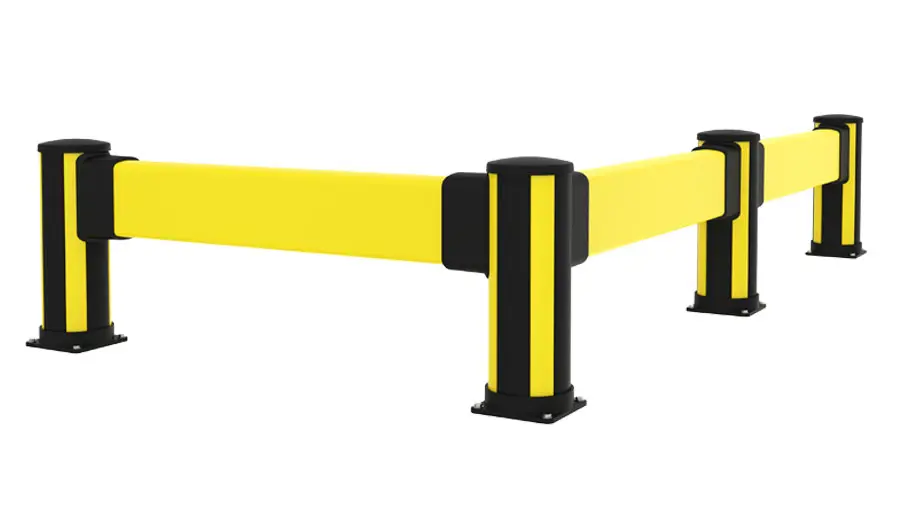

Use the X-Protect Impact High Barrier for high level impact protection. It is ideal for segregating light weight vehicles or defining warehouse zones.

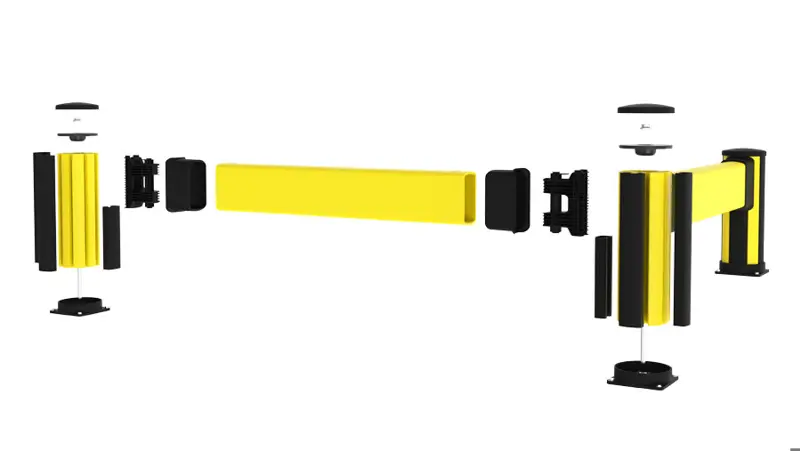

Our modular rails and bollards allow for damaged or worn parts to be replaced at a component level. If you need to replace any component - it is just a slide away.
X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.
Impact test results |
Area of impact |
Load |
Equivalent to |
90° Deflection |
Force to fixings |
Centre of barrier C - C as below |
2000mm |
6200 J |
2500 kg 8 km/h |
5000 kg 5.6 km/h |
430mm |
14.5 kN |
2500mm |
5500 J |
2500 kg 7.5 km/h |
5000 kg 5.3 km/h |
470mm |
12.2 kN |
3000mm |
5200 J |
2500 kg 7.3 km/h |
5000 kg 5.1 km/h |
520mm |
10.4 kN |
Posts |
End post |
2400 J |
2500 kg 4.9 km/h |
5000 kg 3.5 km/h |
NA * |
19.2 kN |
Mid post |
2400 J |
2500 kg 4.9 km/h |
5000 kg 3.5 km/h |
NA * |
18.1 kN |
* Deflection of posts is equivalent or less than that of the rail/s and is not considered to be critical for product selection. Performance is tested at height of the lowest rail. The post will perform better for lower strikes and deflection.
