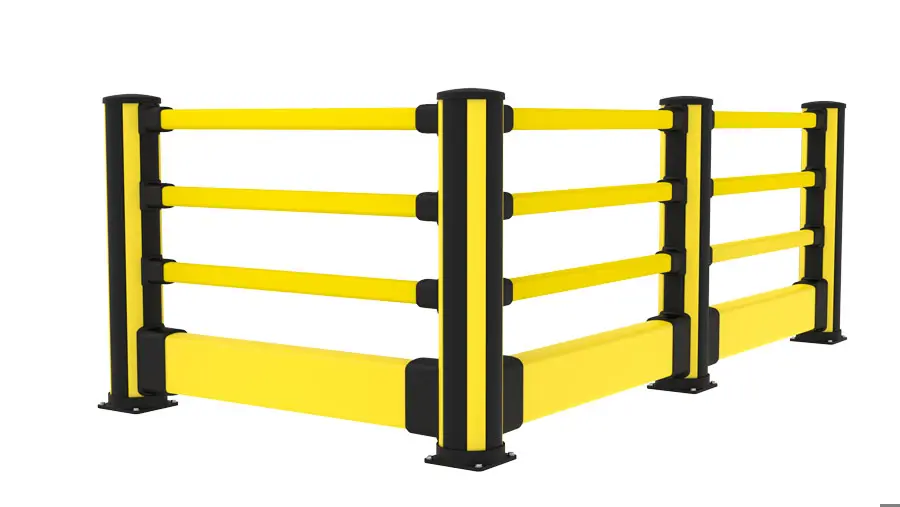

Pedestrian barriers
Use the X-Protect Pedestrian + Impact barrier configuration to protect walkways from medium duty vehicles where there is an increased risk of ground level impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and widt...
Posts
| CAD | Article | Description | Height (mm) | Color | |
|---|---|---|---|---|---|
|
|
BCM1-116-I1P3 | Pedestrian + Impact mid | 1160 |
Zinc Yellow (RAL 1018) Graphite Black (RAL 9011) |
|
|
|
BCM0-116-I1P3 | Pedestrian + Impact mid | 1160 |
Zinc Yellow (RAL 1018) Graphite Black (RAL 9011) |
1
|
|
|
BCE1-116-I1P3 | Pedestrian + Impact end | 1160 | Zinc Yellow (RAL 1018) |
|
|
|
BCE0-116-I1P3 | Pedestrian + Impact end | 1160 |
Zinc Yellow (RAL 1018) Graphite Black (RAL 9011) |
1
|
|
|
BCC1-116-I1P3 | Pedestrian + Impact corner | 1160 | Zinc Yellow (RAL 1018) |
|
|
|
BCC0-116-I1P3 | Pedestrian + Impact corner | 1160 |
Zinc Yellow (RAL 1018) Graphite Black (RAL 9011) |
1
|
Impact rails
| CAD | Article | Description | Length (mm) | CC (mm) | Color | |
|---|---|---|---|---|---|---|
|
|
RCI1-277-0300 | Impact rail | 2770 | 3000 | Zinc Yellow (RAL 1018) |
|
|
|
RCI1-227-0250 | Impact rail | 2270 | 2500 | Zinc Yellow (RAL 1018) |
|
|
|
RCI1-177-0200 | Impact rail | 1770 | 2000 | Zinc Yellow (RAL 1018) |
|
|
|
RCI1-127-0150 | Impact rail | 1270 | 1500 | Zinc Yellow (RAL 1018) |
|
|
|
RCI1-077-0100 | Impact rail | 770 | 1000 | Zinc Yellow (RAL 1018) |
|
|
|
RCI1-047-0070 | Impact rail | 470 | 700 | Zinc Yellow (RAL 1018) |
|
|
|
RCI1-027-0050 | Impact rail | 270 | 500 | Zinc Yellow (RAL 1018) |
|
Hand rails
| CAD | Article | Description | Length (mm) | CC (mm) | Color | |
|---|---|---|---|---|---|---|
|
|
RCP1-177-0200 | Hand rail | 1770 | 2000 | Zinc Yellow (RAL 1018) |
|
|
|
RCP1-127-0150 | Hand rail | 1270 | 1500 | Zinc Yellow (RAL 1018) |
|
|
|
RCP1-077-0100 | Hand rail | 770 | 1000 | Zinc Yellow (RAL 1018) |
|
|
|
RCP1-047-0070 | Hand rail | 470 | 700 | Zinc Yellow (RAL 1018) |
|
|
|
RCP1-027-0050 | Hand rail | 270 | 500 | Zinc Yellow (RAL 1018) |
|
Gate
| CAD | Article | Description | Color | |
|---|---|---|---|---|
|
|
GCP8-069-0121 | Pedestrian gate 690-1210mm | Graphite Black (RAL 9011) |
2
|

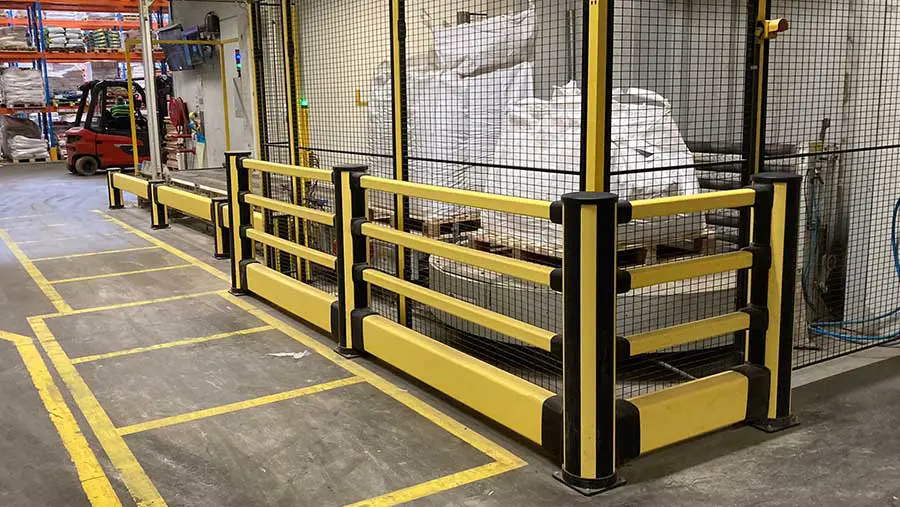

Use the X-Protect Pedestrian + Impact barrier configuration to protect walkways from medium duty vehicles where there is an increased risk of ground level impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and width is adjustable from 690-1210 mm.

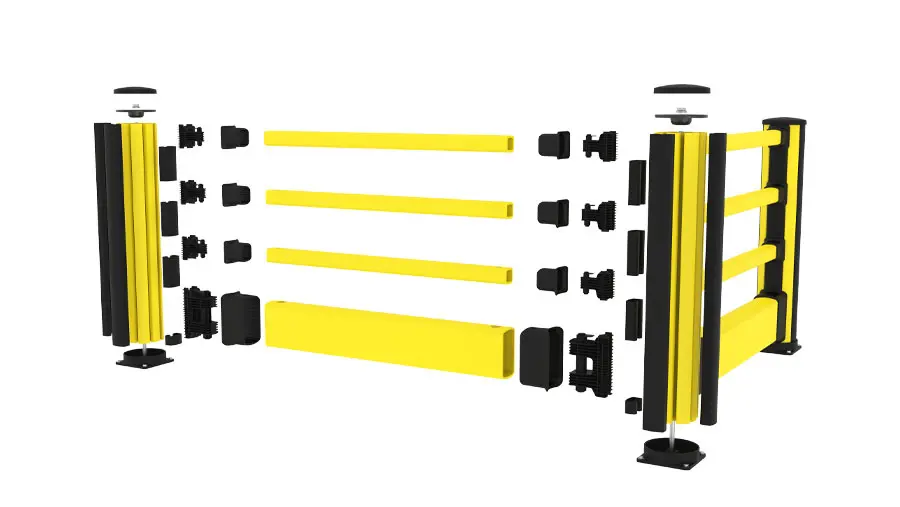

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.
This configuration is compatible with the floor barrier.
| Impact test results | |||||
| Area of impact | Load | Equivalent to | 90° Deflection | Force to fixings | |
| Centre of barrier C - C as below | |||||
| 2000mm | 6700 J | 2500 kg 8.3 km/h |
5000 kg 5.8 km/h |
370mm | 13.5 kN |
| Posts | |||||
| End post | 6000 J | 2500 kg 7.8 km/h |
5000 kg 5.5 km/h |
NA * | 14.7 kN |
| Mid post | 6000 J | 2500 kg 7.8 km/h |
5000 kg 5.5 km/h |
NA * | 11.9 kN |
* Deflection of posts is equivalent or less than that of the rail/s and is not considered to be critical for product selection. Performance is tested at height of the lowest rail. The post will perform better for lower strikes and deflection.
