Accessories
Cutting package
View CAD formatsDownload datasheet

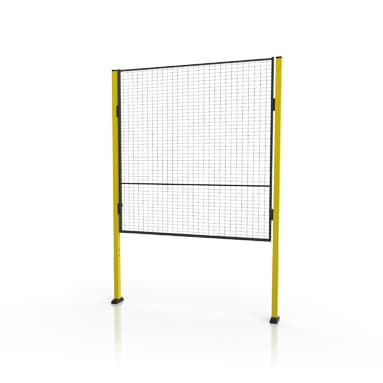

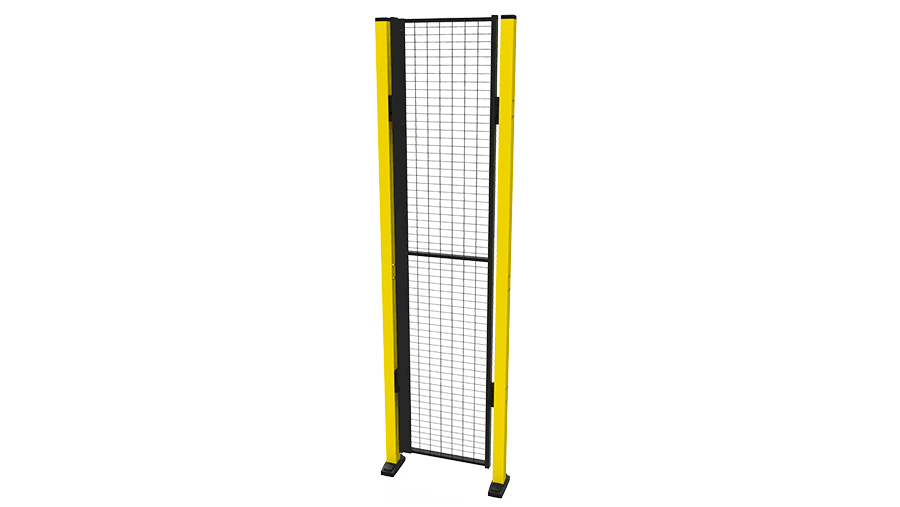

Panels may need to be cut to precise heights and widths in some environments. The X-Guard cutting pack can be used to help you cut panels and is available in both vertical and horizontal versions.
Models
Vertical
Horizontal
Models
CADArticleDescriptionMax WidthHeightColorDownload
Vertical
KVL-3-130Vertical, X-Guard Lite—1300 (mm)Graphite Black (RAL 9011)
Images availableDownload available

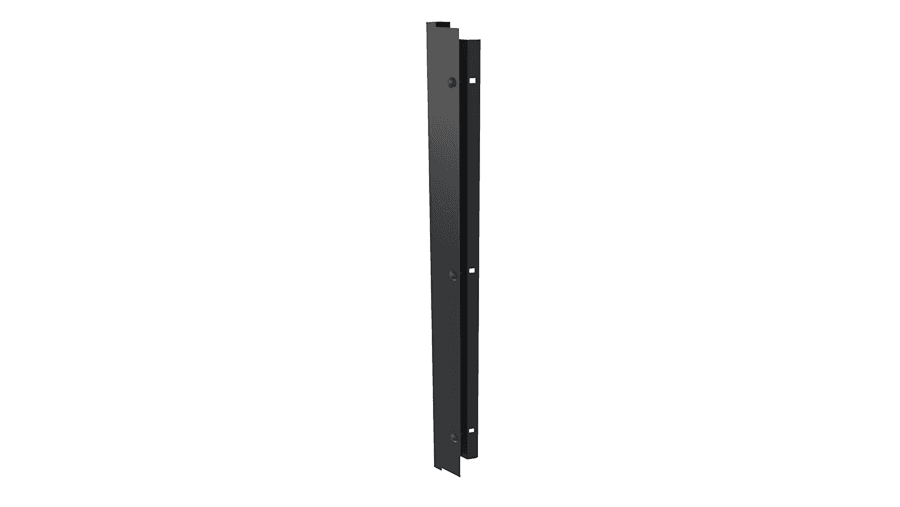

KVC-3-075Vertical, X-Guard Classic—750 (mm)Graphite Black (RAL 9011)
Images availableDownload available
KVC-3-130Vertical, X-Guard Classic—1300 (mm)Graphite Black (RAL 9011)
Images availableDownload available
KVL-3-190Vertical, X-Guard Lite—1900 (mm)Graphite Black (RAL 9011)
Images availableDownload available
KVC-3-190Vertical, X-Guard Classic—1900 (mm)Graphite Black (RAL 9011)
Images availableDownload available
KVL-3-220Vertical, X-Guard Lite—2200 (mm)Graphite Black (RAL 9011)
Images availableDownload available

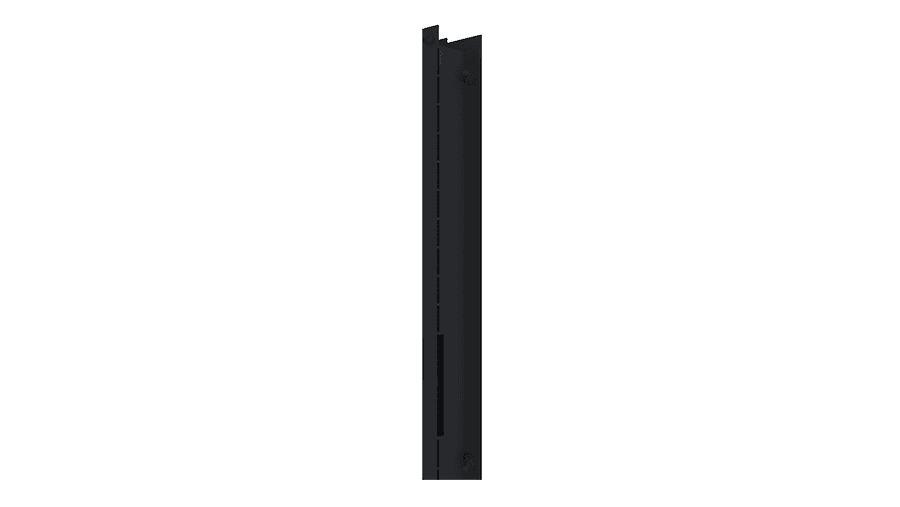

KVC-3-220Vertical, X-Guard Classic—2200 (mm)Graphite Black (RAL 9011)
Images availableDownload available
KVC-3-240Vertical, X-Guard Classic—2400 (mm)Graphite Black (RAL 9011)
Images availableDownload available
Horizontal
KH-3-150Horizontal, incl. fittings K1-011500 (mm)—Graphite Black (RAL 9011)
Images availableDownload available
KH-3-150BHorizontal, excl. fittings K1-011500 (mm)—Graphite Black (RAL 9011)
Images availableDownload available
KHE-3-150Horizontal, X-Guard Lite1500 (mm)—Graphite Black (RAL 9011)
Images availableDownload available
Downloads
Document NameProductSolutionTypeDownload
Product Information
The vertical comes in four heights; 750, 1300, 1900 and 2200 mm. The horizontal only comes in 1500 mm but is compatible with all widths and is available with or without attachments to allow unrestricted positioning. The standard cutting pack colour is black (RAL 9011) but customised colours are available upon request.
A rubber strip can be fitted to provide a soft and neat edge where mesh panels have been cut.
