Doors

Single sliding door

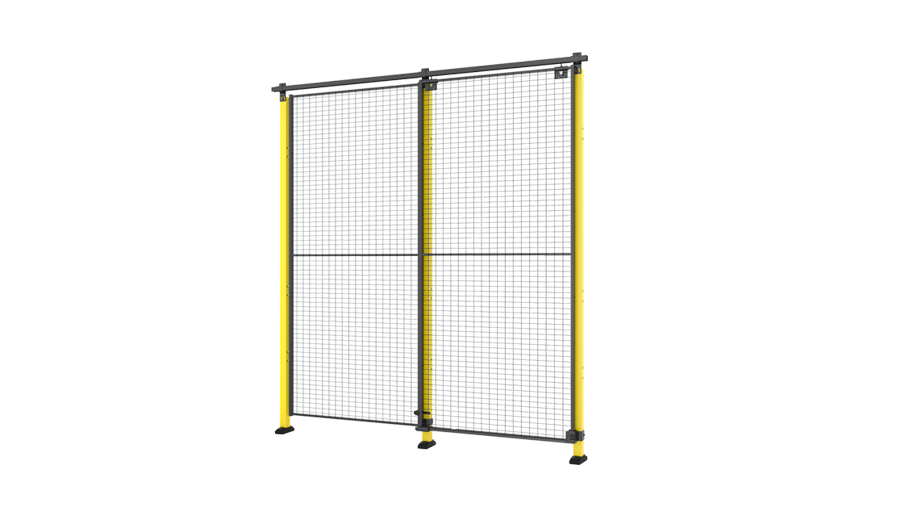

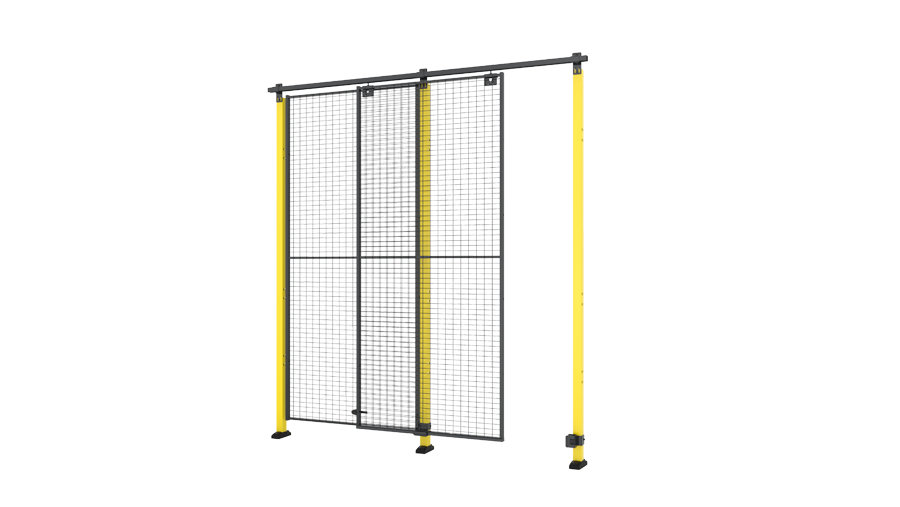

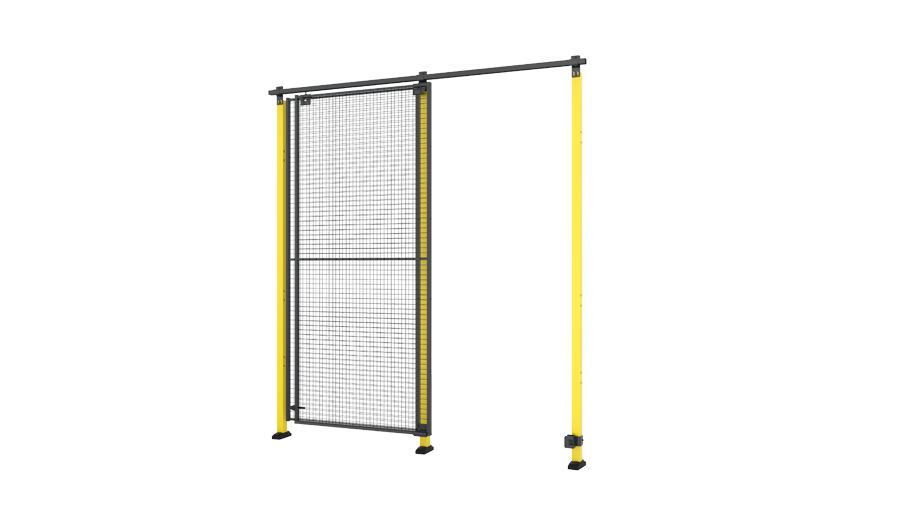

The X-Guard single sliding door is a space-saving solution for safe access in industrial environments. Ideal for cramped spaces and truck aisles, it provides smooth operation with an upper rail and a max opening width of 5,890mm. Fully compliant with the Machinery Directive 2006/42/EC.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Height max 2500 mm

    16 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D20-XXX100A Single sliding door 880 2500 Mesh
    Plastic
    Sheet metal
    Classic 50x50
    3 2
    D20-XXX140A Single sliding door 1380 2500 Mesh
    Plastic
    Sheet metal
    Classic 50x50
    5 2
    D20-XXX220A Single sliding door 2080 2500 Mesh Classic 50x50
    1 2
    D20-XXX310A Single sliding door 2980 2500 Mesh Classic 50x50
    1 2
    D20-XXX570A Single sliding door 5880 2500 Mesh Classic 50x50
    1 2
    D40-XXX100A Single sliding door 890 2500 Mesh
    Plastic
    Sheet metal
    Premium 70x70
    5 2
    D40-XXX140A Single sliding door 1390 2500 Mesh
    Plastic
    Sheet metal
    Premium 70x70
    2 2
    D40-XXX220A Single sliding door 2090 2500 Mesh Premium 70x70
    1 2
    D40-XXX310A Single sliding door 2990 2500 Mesh Premium 70x70
    1 2
    D40-XXX570A Single sliding door 5890 2500 Mesh Premium 70x70
    1 2

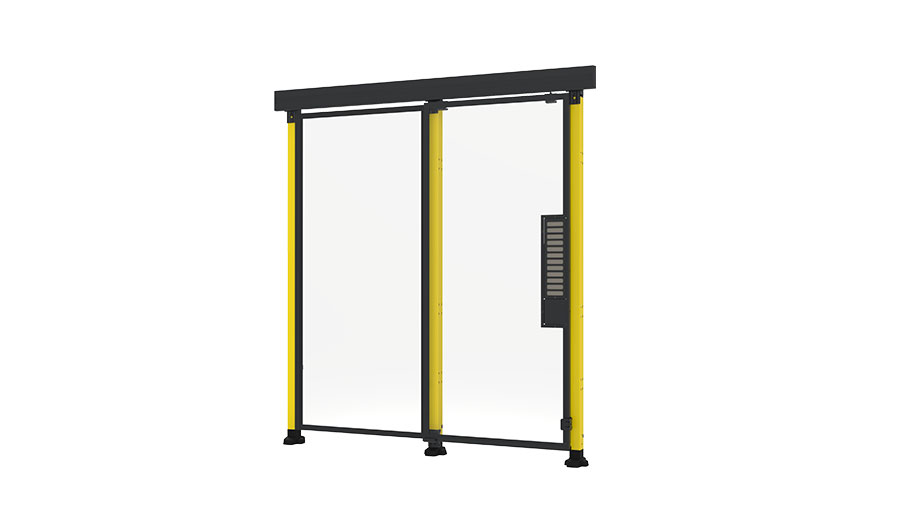

    DP20-XXX220A Single sliding door with upper frame 2080 2300 Plastic
    Sheet metal
    Classic 50x50
    2 2
    DP20-XXX310A Single sliding door 2980 2300 Plastic
    Sheet metal
    Classic 50x50
    2 2
    DP20-XXX570A Single sliding door 5880 2300 Plastic
    Sheet metal
    Classic 50x50
    2 2
    DP40-XXX220A Single sliding door with upper frame 2090 2300 Plastic
    Sheet metal
    Premium 70x70
    4 2
    DP40-XXX310A Single sliding door 2990 2300 Plastic
    Sheet metal
    Premium 70x70
    2 2
    DP40-XXX570A Single sliding door 5890 2300 Plastic
    Sheet metal
    Premium 70x70
    2 2
  • Height max 3250 mm

    10 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D20-XXX100B Single sliding door 880 3250 Mesh Classic 50x50
    1 2
    D20-XXX140B Single sliding door 1381 3250 Mesh Classic 50x50
    2 2
    D20-XXX220B Single sliding door 2080 3250 Mesh Classic 50x50
    2 2
    D20-XXX310B Single sliding door 2980 3250 Mesh Classic 50x50
    2 2
    D20-XXX570B Single sliding door 5880 3250 Mesh Classic 50x50
    2 2
    D40-XXX100B Single sliding door 890 3250 Mesh Premium 70x70
    2 2
    D40-XXX140B Single sliding door 1390 3250 Mesh Premium 70x70
    2 2
    D40-XXX220B Single sliding door 2090 3250 Mesh Premium 70x70
    2 2
    D40-XXX310B Single sliding door 2990 3250 Mesh Premium 70x70
    2 2
    D40-XXX570B Single sliding door 5890 3250 Mesh Premium 70x70
    2 2

Downloads

Single sliding door

Product information

X-Guard Technical

Brochure

Product information

The X-Guard single sliding door is a space-saving solution for safe access in industrial environments. Ideal for cramped spaces and truck aisles, it provides smooth operation with an upper rail and a max opening width of 5,890mm. Fully compliant with the Machinery Directive 2006/42/EC.

The X-Guard single sliding door is a practical safety solution for areas where space is limited. Designed with an upper rail for smooth operation, it allows easy access for personnel in confined spaces or near truck aisles where a hinged door may not be suitable. The door’s width and height are determined by the selected panel, with a maximum opening width of 5,890mm, making it adaptable for various industrial environments. *The maximum width varies depending on the used locking solution.

Compliant with the Machinery Directive 2006/42/EC, the single sliding door meets strict safety requirements. Locking mechanisms and safety switches can be customized based on what is inside the fenced-off area.

While sliding doors should generally not be used as emergency exits, they remain a cost-effective and space-efficient choice for controlled access in warehouses, production facilities, and other industrial settings where a wider yet compact door solution is needed.

(Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)
