31 Aug 2021• Machine Guarding

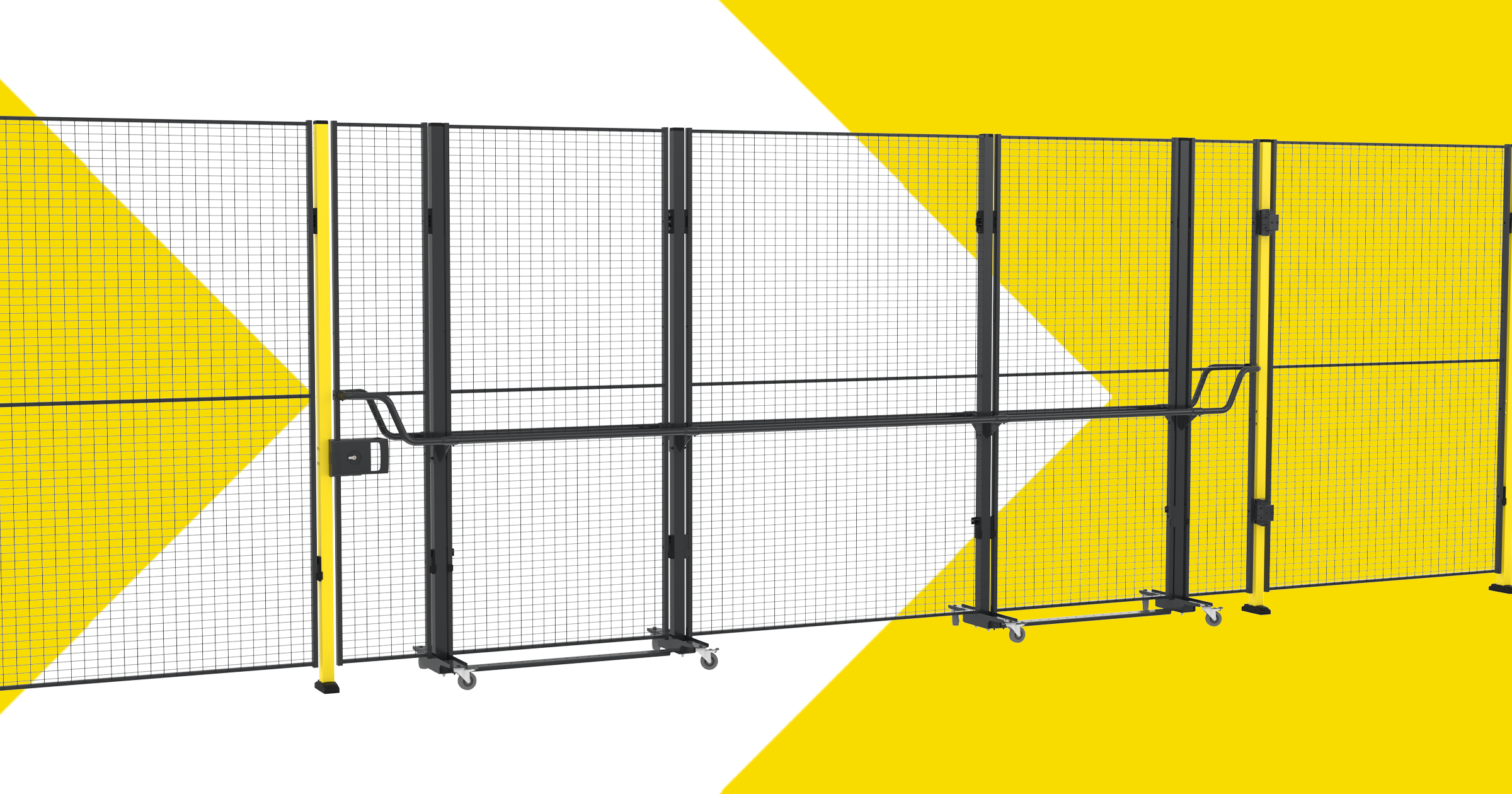

The new door which you just detach and roll aside
When closed, the door is held in place by two slide-in hinges. Once locked on the lock end, it cannot be removed from these hinges.
However, to prevent operators from manipulating the hinges, a non-contact safety switch may have to be installed to monitor the hinge side. On the lock end, you can chose any lock from the list of options for our standard hinge doors.
The door is designed for our 50 x 50 mm posts. The carriages with the wheels add 50 mm to the height. Therefore, use a 2250 mm post to ensure the gap on the floor will remain at 100 mm, article no P31-225 (Graphite black RAL 9011). To achieve a height of 1400 mm use the 1350 mm high post and for 2000 mm the 1950 mm post, which are optionally available.
This is important to allow aligning the door to the height of the connecting fence and retain the 100 mm gap to the floor. The width of the left and right outer end door panels is fixed to 400 mm and relates to the end pieces of the handle bar arrangement.
For more information about this product – Download the technical leaflet here:
https://www.axelent.co.uk/media/jfldepfa/x-guard-detachable-hinge-door_en_lr.pdf
